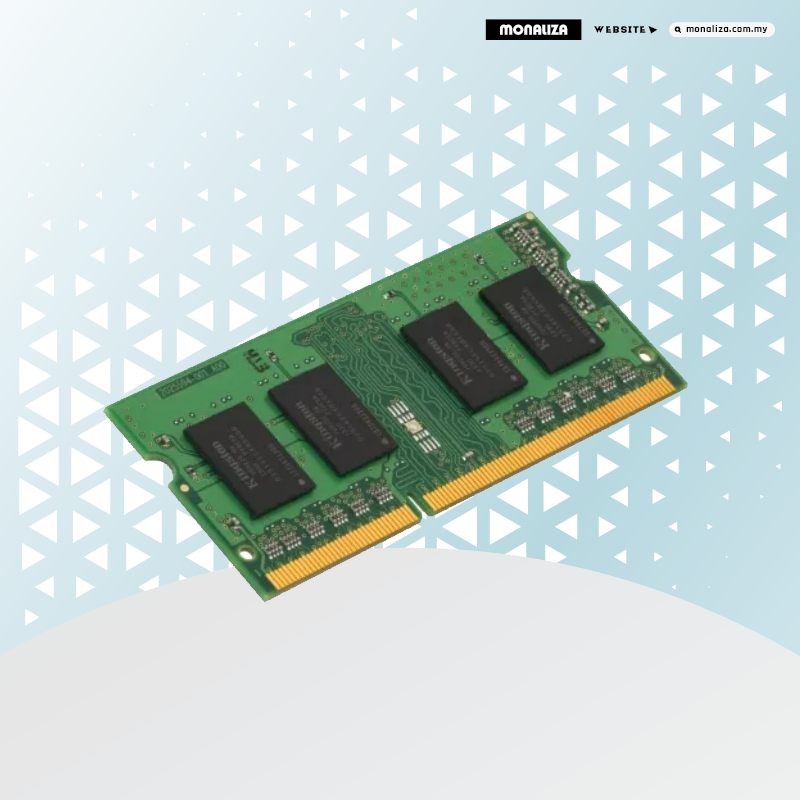

Kingston 4GB DDR3 1600MHZ NB Ram

Description

DESCRIPTION :

ValueRAM’s KVR16S11S8/4 is a 512M x 64-bit (4GB)
DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 512M x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR3-1600 timing of 11-11-11 at 1.5V. This 204-pin
SODIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:

FEATURES :

• JEDEC 1.5V Power Supply
• VDDQ = 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal banks
• Programmable CAS latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write (either on the fly using A12 or
MRS)
• Bi-directional Differential Data Strobe
• Internal (self) calibration: Internal self calibration through ZQ
pin (RZQ: 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°Cº
• Asynchronous Reset
• PCB: Height 1.180” (30.00mm), double sided component

SPECIFICATIONS :

• CL(IDD) : 11 cycles
• Row Cycle Time (tRCmin) : 48.125ns(min.)
• Refresh to Active/Refresh
  Command Time (tRFCmin) : 260ns(min.)
• Row Active Time (tRASmin) : 35ns(min.)
• UL Rating : 94 V – 0
• Operating Temperature : 0°C to +85°C
• Storage Temperature : -55°C to +100°C
