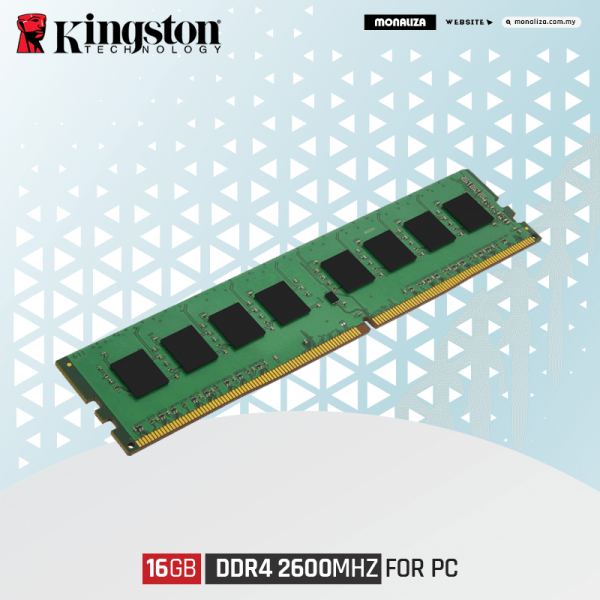

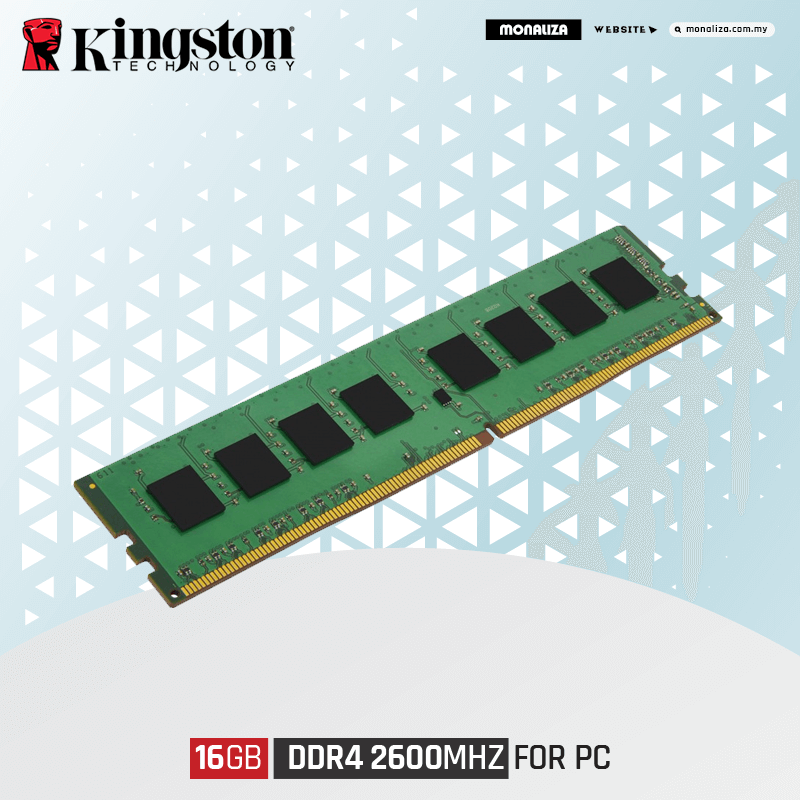

Kingston 16GB DDR4 2666MHZ CL19 PC

Description

FEATURES

• Power Supply: VDD=1.2V Typical

• VDDQ = 1.2V Typical

• VPP – 2.5V Typical

• VDDSPD=2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Dual-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free
