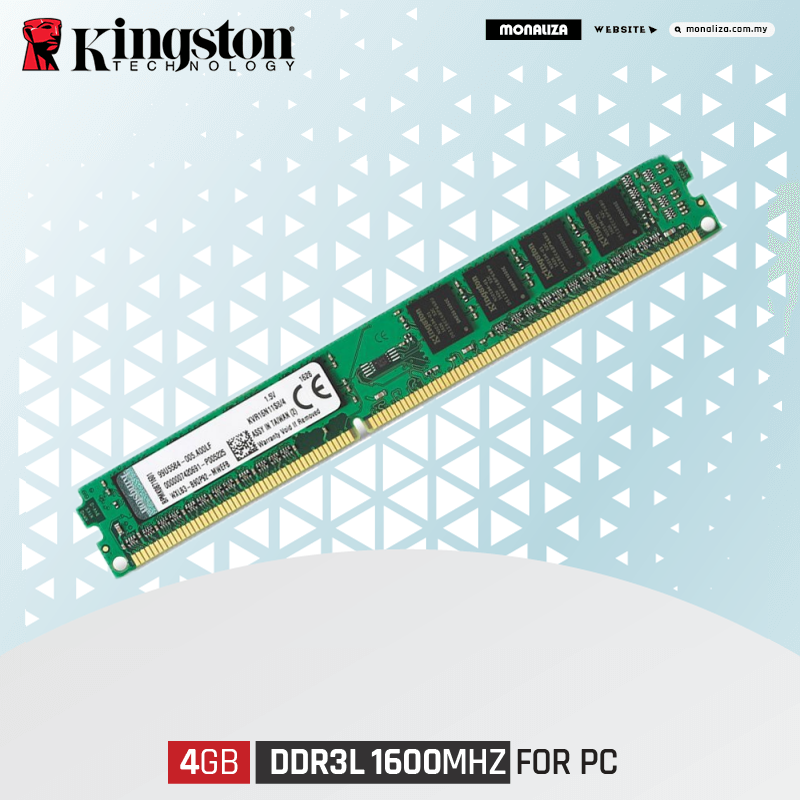

Kingston 4GB DDR3L 1600MHz Low Voltage Ram FOR PC

Description

Highlights

• – 4GB Notebook RAM
• – DDR3L 1600MHz
• – Voltage 1.35V
• – 204-pin SODIMM

Product Description

• – JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• – VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• – 800MHz fCK for 1600Mb/sec/pin
• – 8 independent internal bank
• – Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• – Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• – 8-bit pre-fetch
• – Burst Length: 8 (Interleave without any limit, sequential with
• – starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• – Bi-directional Differential Data Strobe
• – Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• – On Die Termination using ODT pin
• – Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C – Asynchronous Reset
• – PCB: Height 1.18” (30mm), double sided component
