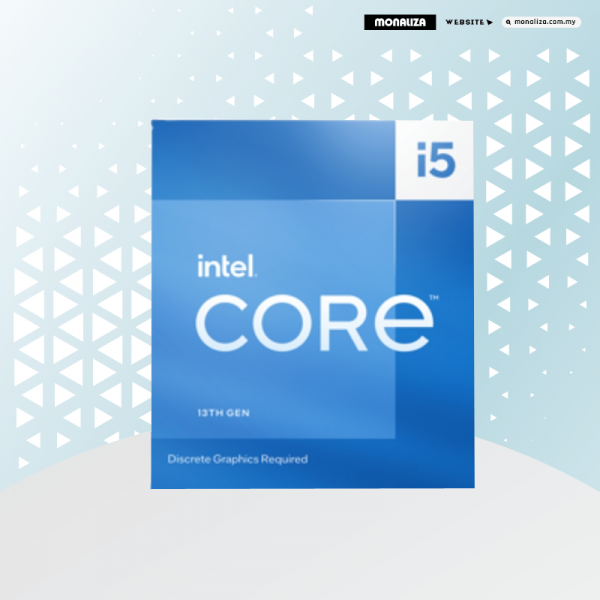

Intel Core I5-13400F LGA1700 13TH GEN Processor

Description

Essentials

• Product Collection

13th Generation Intel® Core™ i5 Processors

• Code Name

Products formerly Raptor Lake

• Vertical SegmentDesktop
• Processor Numberi5-13400F
• LithographyIntel 7
• Use ConditionsPC/Client/Tablet

CPU Specifications

• Total Cores10
• # of Performance-cores6
• # of Efficient-cores4
• Total Threads16
• Max Turbo Frequency4.60 GHz
• Performance-core Max Turbo Frequency4.60 GHz
• Efficient-core Max Turbo Frequency3.30 GHz
• Performance-core Base Frequency2.50 GHz
• Efficient-core Base Frequency1.80 GHz
• Cache20 MB Intel® Smart Cache
• Total L2 Cache9.5 MB
• Processor Base Power65 W
• Maximum Turbo Power148 W

Supplemental Information

• Marketing StatusLaunched
• Launch DateQ1’23
• Embedded Options AvailableNo

Memory Specifications

• Max Memory Size (dependent on memory type)128 GB
• Memory TypesUp to DDR5 4800 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels2
• Max Memory Bandwidth76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision4.0
• Max # of DMI Lanes8
• Scalability1S Only
• PCI Express Revision5.0 and 4.0
• PCI Express Configurations ‡Up to 1×16+4, 2×8+4
• Max # of PCI Express Lanes20

Package Specifications

• Sockets SupportedFCLGA1700
• Max CPU Configuration1
• Thermal Solution SpecificationPCG 2020C
• TJUNCTION100°C
• Package Size45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator3.0
• Intel® Thread DirectorYes
• Intel® Deep Learning Boost (Intel® DL Boost)Yes
• Intel® Speed Shift TechnologyYes
• Intel® Turbo Boost Max Technology 3.0 ‡No
• Intel® Turbo Boost Technology ‡2.0
• Intel® Hyper-Threading Technology ‡Yes
• Intel® 64 ‡Yes
• Instruction Set64-bit
• Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle StatesYes
• Enhanced Intel SpeedStep® TechnologyYes
• Thermal Monitoring TechnologiesYes
• Intel® Volume Management Device (VMD)Yes

Security & Reliability

• Intel® Standard Manageability (ISM) ‡Yes
• Intel® Control-Flow Enforcement TechnologyYes
• Intel® AES New InstructionsYes
• Secure KeyYes
• Intel® OS GuardYes
• Execute Disable Bit ‡Yes
• Intel® Boot GuardYes
• Mode-based Execute Control (MBEC)Yes
• Intel® Virtualization Technology (VT-x) ‡Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡Yes
