Description
ATX Version ATX 12V V2.52
PFC Active PFC
Input Voltage 200-240Vac
Input Current 10-5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 2400 RPM
Noise Level @ 20% 16.54 dBA
Noise Level @ 50% 26.5 dBA
Noise Level @ 100% 42.5 dBA
Efficiency 88% Typically
80 PLUS Rating 80 PLUS Bronze EU 230V
ErP 2014 Lot 3 Yes
Power Good Signal 100 – 500 ms
Hold Up Time >14ms at 100% Full Load@230Vac
MTBF >100,000 Hours
Protections OVP, OPP, SCP, UVP, OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 6
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 4

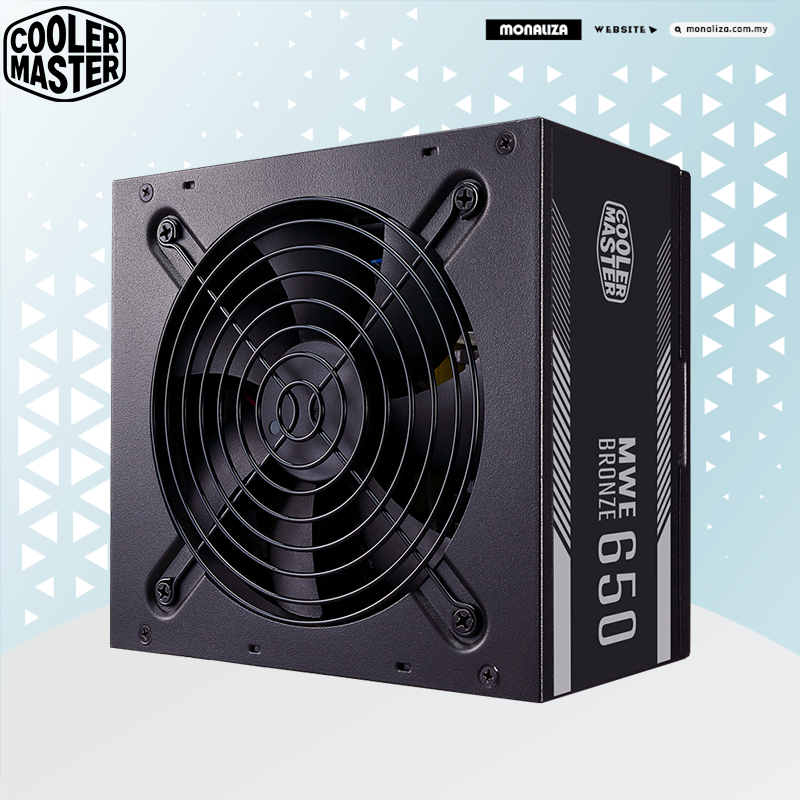

Series MWE Bronze Series
80 Plus Bronze
Modular Non Modular
Wattage 500 to 750W
