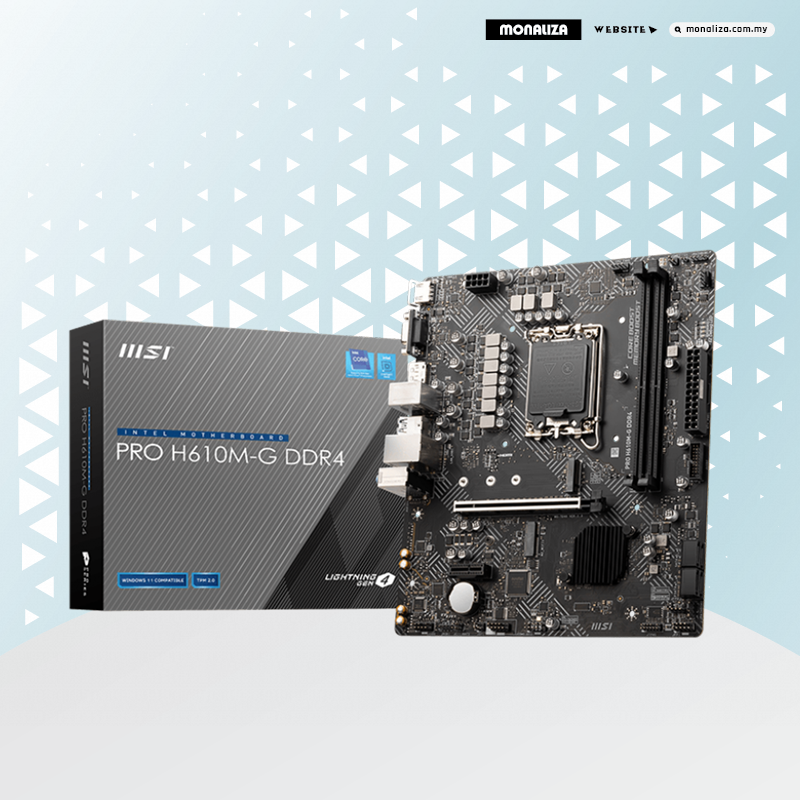

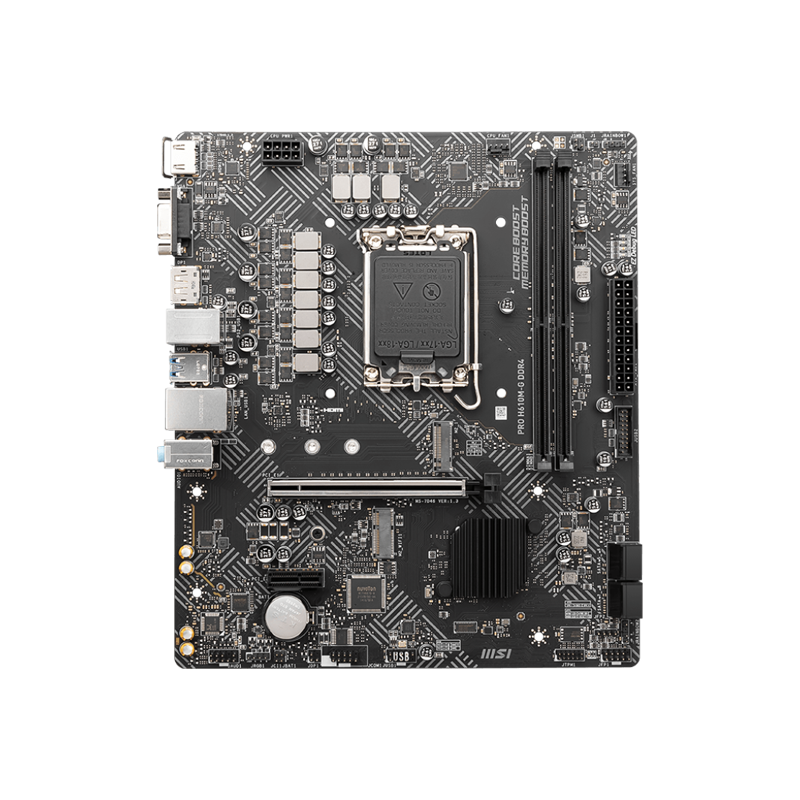

MSI PRO H610M-G DDR4 Intel LGA 1700 Motherboard

Description

DETAILS

1. PROCESSOR :Supports 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors¹ Processor socket LGA1700
2. CHIPSET : Intel^® H610 Chipset
3. MEMORY :

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

4. EXPANSION SLOT :

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
  • Supports PCIe 3.0 x1
• 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

5)ONBOARD GRAPHICS :

• 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz ^1 2
• 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz¹
• x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz^1 2

6)SATA PORTS :

• 4x SATA 6Gb/s ports¹

7)M.2 SSD SLOT:

• 1x M.2 slot (Key M, from chipset)¹
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

8) USB :

Intel^® H610 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

9) AUDIO :

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

10) LAN :

• 1x Intel^® I219V 1Gbps LAN controller

11) POWER CONNECTORS :

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

12) FAN CONNECTORS :

• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

13) SYSTEM CONNECTORS :

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector

14) JUMPERS :

• 1x Clear CMOS jumper

15) LED FEATURES :

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

16) BACK PANEL PORTS :

1. HDMI™
2. VGA
3. DisplayPort
4. Keyboard/Mouse
5. USB 3.2 Gen 1 5Gbps Type-A
6. LAN port
7. Audio connector
8. USB 2.0

17) DIMENSIONS :

• mATX Form Factor
• 9.61 x 8.31 in. (24.4 cm x 21.1 cm)

18) OPERATING SYSTEM : Support for Windows^® 11 64-bit

19)BOX CONTENT :

1.  MSI^® does not guarantee the risks or damages caused by changing the cover.
2.  These pictures are for reference only and may vary without notice.
