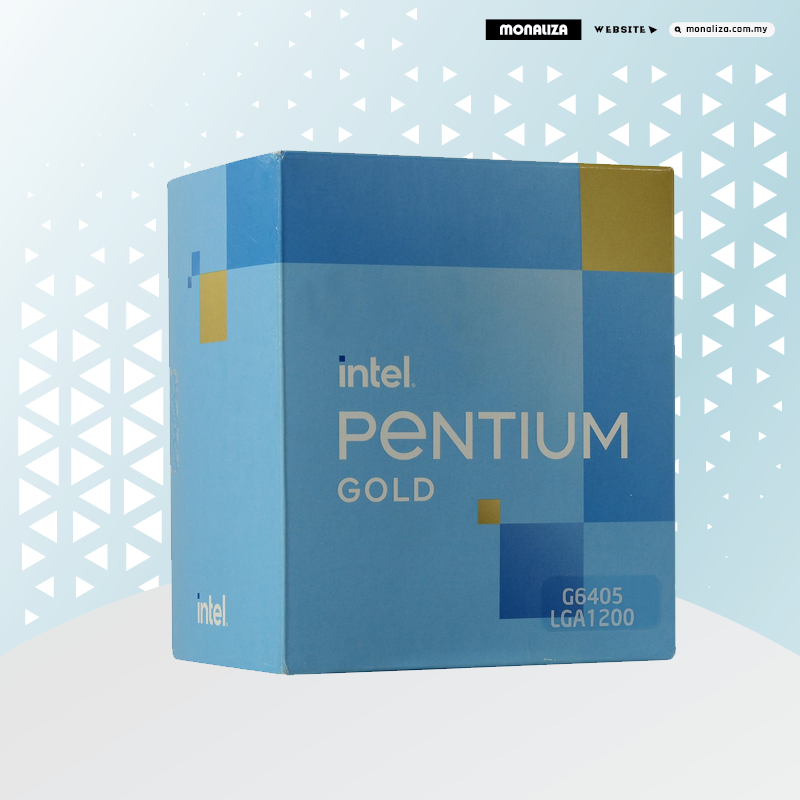

Intel Pentium Core G6405 4.1GHZ 4MB Cache LGA1200

Description

Intel G6405 Specs

General

• CPU Model : Intel Pentium G6405
• CPU Socket : LGA 1200
• Manufacturing Process : 14 nm
• Maximum CPU Configuration : 1S
• Maximum Number of PCIe Lanes : 16 (Revision 3.0)
• Unlocked : No

Performance

• Number of Cores : 2
• Number of Threads : 4
• Base Clock Speed : 4.1 GHz
• L3 Cache : 4 MB

Memory Support

• Maximum Capacity : 128 GB
• Memory Support : DDR4 Up to 2666 MHz
• ECC Memory : No
• Channel Architecture : Dual Channel
• Optane Memory Support : Yes

Power

• Thermal Design Power (TDP) : 58 W
• Included Thermal Solution : PCG 2015B
• Maximum Temperature : 212°F / 100°C
• Thermal Monitoring Technologies : Yes

Technology

• AES Support : Yes
• Extension : SSE 4.1/4.2
• Instruction Set : 64-Bit
• Virtualization : Yes: Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
• DMI : DMI3 (8 GT/s)
• vPro Support : No
• Performance Technologies : Hyper-Threading
• Security Technologies : Device Protection with Boot Guard, Execute Disable Bit, OS Guard, Secure Key, Software Guard Extensions
• Video Technologies : Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Integrated Graphics

• Integrated Graphics : Intel UHD Graphics 610
• Maximum Resolution Support : 4096 x 2304 at 60 Hz
• Supported APIs : DirectX: 12
  OpenGL: 4.5
• Number of Displays : 3
• Maximum Shared Video Memory : 64 GB
• Output Support : eDP, DisplayPort, HDMI
• Base Clock Speed : 350 MHz
• Maximum Boost Speed : 1.05 GHz
