Description
What This Product Does

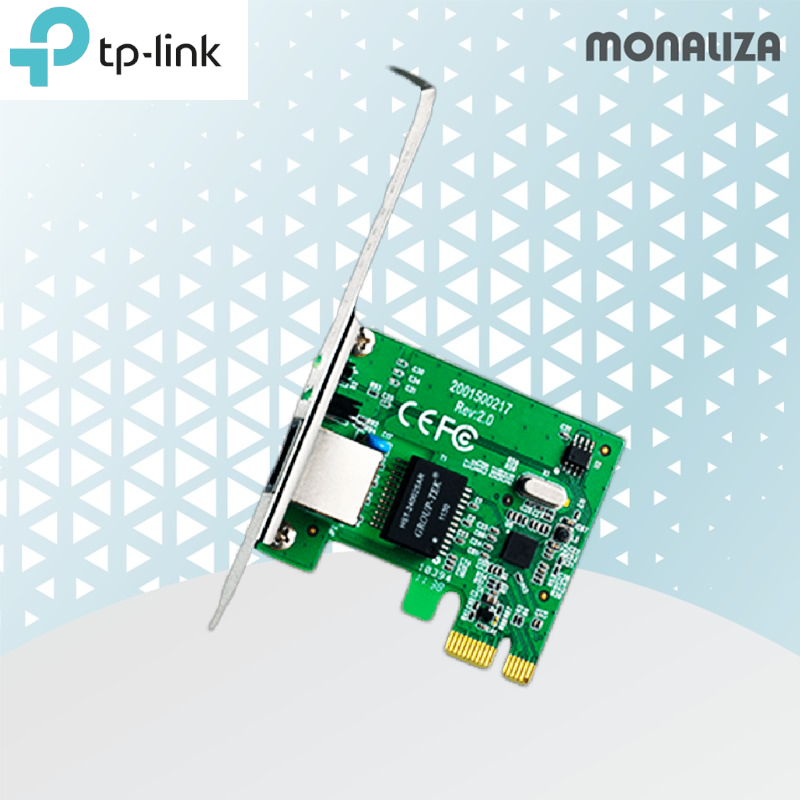

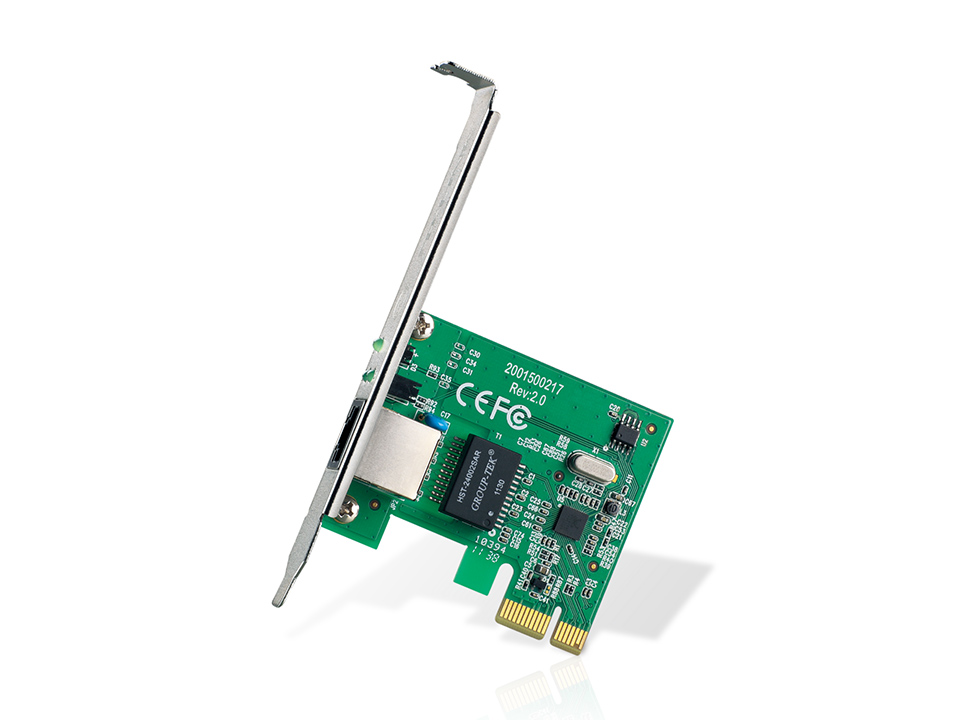

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
| Interface | 32-bit PCI Express 1 10/100/1000Mbps RJ45 port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED | Status |
| Wireless Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Data Rates | 10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode |
| LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
| Dimensions | 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Gigabit PCI Express Network Adapter TG-3468 Resource CD Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/XP/Vista (32/64bits) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
